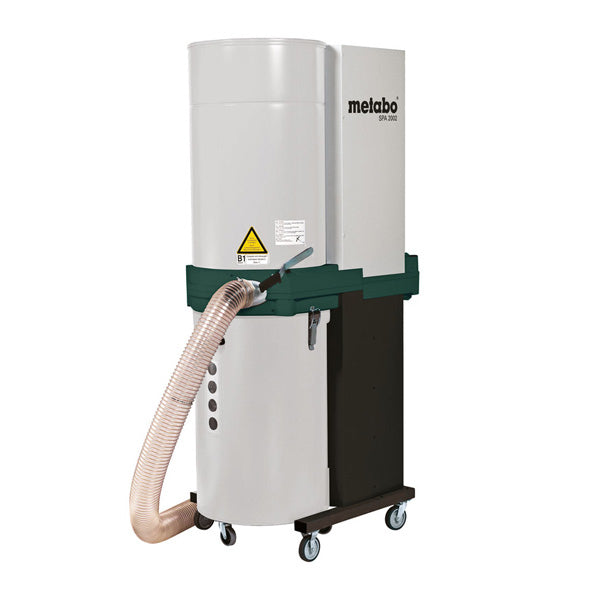

Metabo Chip & Dust Extraction Unit, Heavy Duty Vacuum 2124 Pa

SPA 2002 W CHIP AND DUST EXTRACTION UNIT • (220-240 V / 50 HZ); CARDBOARD BOX

• Raw air extraction device, meets the purity and safety requirements of the regulation GS-HO-07

• User protection by means of continuous compliance of only 0.1 mg/m³ residual dust content (dust class M)

• Released for commercial use

• For connection to stationary and semi-stationary woodworking machines

• Optimum ratio of flow and vacuum for maximum performance

• Cyclone technology goes easy on the filter for extended maintenance intervals

• Manometer for monitoring the minimum air volume flow

• Easy and effective filter cleaning, even during operation

• Stable stand with a supported chip collection bag

• Wheeled collection container for easy transport of the chips

• Release lever for quick changing of dust sack

• Window for checking fill level of the bin

• Comprehensive range of accessories: automatic switch-on devices, filter cartridges, hoses, and adapters

• Characteristics

• Dimensions 1178 x 650 x 1973 mm / 3.9 x 2.2 x 6.5 ft

• Maximum vacuum 2124 Pa / 0.3 psi

• Maximum volume flow 790 m³/h / 208696 gal/h

• Filter surface 4.1 m² / 6355 sq.inch

• Hose connection Ø 100 mm / 4 Inch

• Chip bag capacity 135 l / 36 gal

• Mains voltage 220 - 240 V

• Rated input power 1.1 kW

• Weight 114 kg / 251 lbs

• Noise emission

• Sound pressure level 78 dB(A)

• Sound power level (LwA) 94 dB(A)
